DS-PROcapture-X

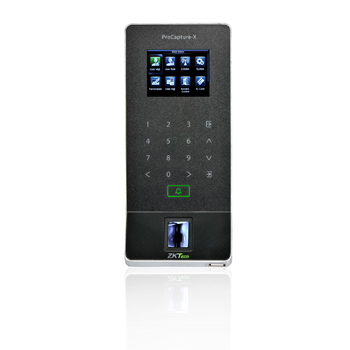

DS-ProCapture-X is a POE fingerprint access control terminal with the most advanced SilkID technology, which not only possesses outstandingly high identification rate towards dry, wet and rough finger, but also provides the utmost security with its live finger detecting capability. The device is designed in horizon style design and is equipped with touch keypad, which provides a superior touching experience. It also offers flexibility standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP, RS485 and Wi-Fi (Optional) are available that the device can be used in different networks.
Features
- Revolutionary SilkID Fingerprint Sensor
- Multiple Verification Modes: Fingerprint / Card / Password
- Outstanding Performance With Dry, Wet and Rough Fingers
- Simple Management & Scalability
- Wireless Network * Wi-Fi Connection
| Name | Details |
| Fingerprints Capacity | 20,000 |
| Card Capacity | 50,000 |
| Transactions Capacity | 500,000 |
| LCD Display | 2.4 Inches TFT-LCD Screen |
| Sensor | SilkID Fingerprint Sensor |
| Operating Temperature | 0°C ~ 45 °C |
| Dimension | 200.5 × 88.5 × 28.7 mm. |
| Power Supply | 12V DC 3A, < 500 mA |
| Compatibility | Wiegand Slave Reader RS485 FP Slave Reader ZKBioSecurity Software |
| Fingerprint Algorithm | ZKFinger v10.0 |
| Standard Function | Access Levels / Groups / Holidays DST / Bell Schedule Duress Mode Anti-Passback Record Query Custom Wallpaper & Screen Saver |
| Optional Functions | Wi-Fi, 125KHz EM Reader / Mifare, Wireless doorbell, ZK Encrypted Card Fingerprint Card |
| Communication | TCP/IP RS485 (For fingerprint&card Reader) USB Host Wiegand Input / Output |
