PX-8304HR
- Description
- Specifications

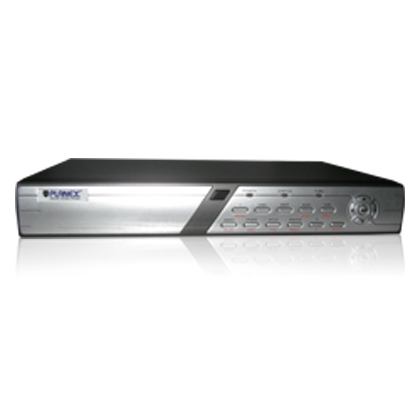

PX-8304HR Standalone DVR
Features
- H.264 video compression
- Up to 4CIF resolution recording
- VGA output at 1280 × 1024 resolution
- 4-ch synchronous playback
- Dual-stream
- SADP(IP Finder), NTP, DHCP, SMTP protocols
| PX-8304HR | Name | Details |
| Video/Audio Input | Video Compression: | H.264 |
| Analog Video Input: | 4-ch | |
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω); PAL / NTSC self-adaptive | |
| Audio Compression: | G.711 | |
| Audio Input: | 4-ch, RCA connector (2.0 Vp-p, 1 kΩ) | |
| Voice talk input: | 1-ch RCA(2.0Vp-p, 1kΩ) | |
| Video/Audio Output | VGA Output: | 1-ch, resolution: 1280×1024/60Hz, 1024×768/60Hz |
| CVBS Output: | 2-ch, BNC connector (1.0Vp-p, 75Ω); Resolution: PAL: 704×576, NTSC:704×480 |
|
| Recording resolution: | 4CIF/2CIF/CIF | |
| Frame Rate: | Main Stream: 4CIF/2CIF @ 12fps Sub Stream: CIF / QCIF @ up to 25fps |
|
| Video Bit Rate: | 32Kbps~2048Kbps, or user-defined (Max.3Mbps) | |
| Stream Type: | Video/Video &Audio | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Synchronous Playback: | 4-ch | |
| HARD DISK DRIVER | Interface Type: | 1 SATA Interface |
| Capacity: | Up to 2TB capacity for each disk | |
| External Interface | Network Interface: | 1 RJ45 10M/100M adaptive Ethernet Interface |
| USB Interface: | 2 USB 2.0 Interfaces | |
| Serial Interface: | 1 RS-232 interface; 1 RS-485 interface | |
| Alarm Input: | 4-ch | |
| Alarm Output: | 1-ch | |
| General | Power Supply: | 12VDC |
| Consumption: | ≤10W (without hard disk or DVD-R/W) | |
| Working Temperature: | -10°C~+55°C | |
| Working Humidity: | 10%~90% | |
| Dimensions: | 315(W)×230(D)×45mm(H)(12.40" × 9.06" × 1.77") | |
| Weight: | ≤2 kg(without hard disk or DVD-R/W) |
