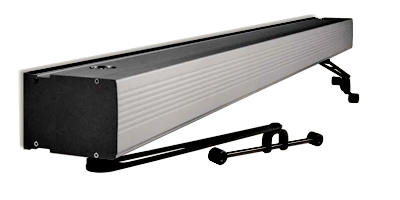

Swing Door Operator-Fly
- Description
- Features
- Specifications
An automatic door system requires it to be integrated with accessories, which are indispensable for its command and safety functions. For this purpose Came offers specific devices any applicative context and need, even special needs.
Command radar, function selector, emergency batteries, sensitive plates and coded selectors are just some examples of what is available to complete install, functional and above all original Came systems.
- For swing doors of up to 1,2 m per leaf.
- Ideal solution to rationally manage commercial, service, residential and public spaces.
- Customized and customizable profiles. The beam and cover are made of 6060 natural anodised aluminium alloy, but other varnishings and anodised finishes are available on request.
- An “intelligent” core. The microprocessor-managed command and control logic enable to automation system to self-adjust the door operating parameters, providing maximum safety of the operation.
- Obstacle detection. The control software enables to identify any obstacles on the motion line of the door leaves, and thus activate the slow-moving safety procedure, which re-sets itself when the obstacle has been removed.
- With no barriers. Fly door automation systems along with the Corsa and Rodeo series of sliding doors provide valid assistance to design when space is an issue, and do away with architectural barriers and limitations.
- Access Control. The Fly swing door operator provide the natural complement for the access control system. Only by automating all of the doors within the controlled area, can client access be constantly monitored. This is true whether they be subscribed to just one service or simply operate in the controlled area. This is therefore a complete system, integrated in every detail, to provide maximum reliability and performance in the best of Came tradition.

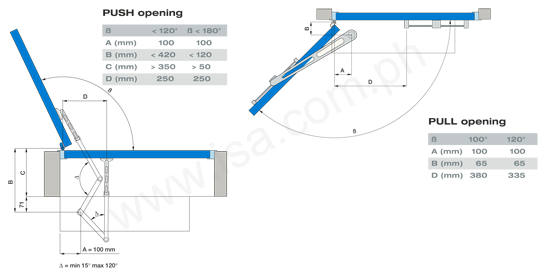

- Movement levers. These are specific for any application whether in the PULL or PUSH mode, depending on which side the operator is mounted in terms of the door.
Technology and usefulness
An automatic door provides an added value to any building, whether it be office, residential or commercial. Handsome and functional at the same time, door automation systems make integrate the various available solutions so as to obtain the most performance out of the system. Came automation system, along with evolved design, make it so that in modern day construction, doors are no longer a barrier but rahter a service.
Sizing

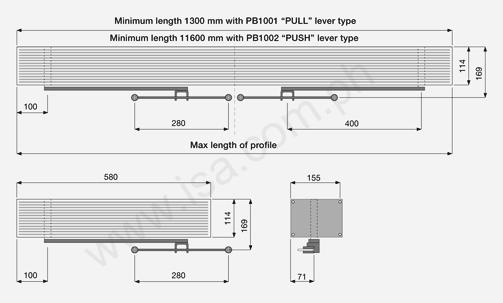

Sizing a swing door with Fly is a simple operation. All you need are the weight and width of the door leaf to be operated and to check that these be compatible with the limits to use. One further measure will be to check the mechanical efficiency of the door, especially if the door is a pre-existing one. Finally, it is important to check that the space needed to fix the operator is available above the door, besides the opening direction of the door - is it PULL or PUSH. This is so as to choose which is the appropriate motion lever to employ.
Dedicated Accessories
An automatic door system requires it to be integrated with accessories, which are indispensable for its command and safety functions. For this purpose Came offers specific devices any applicative context and need, even special needs. Command radar, function selector, emergency batteries, sensitive plates and coded selectors are just some examples of what is available to complete install, functional and above all original Came systems.
| AD-500 | PB1100 | PB2100 |
| Power supply (V) | 230 A.C. | 230 A.C. |
| Motor power supply (V) | 24 D.C. | 24 D.C. |
| Current draw (A) | 0,6 | 1,2 |
| Max power (W) | 138 | 276 |
| Max power for accessories (W) | 30 | 60 |
| Manoeuver speed 90° (cm/s) | 2÷5 | 2÷5 |
| Duty cycle (%)> | intensive use | intensive use |
| Max torque (Nm) | 40 | 40 |
| Operating temperature (°C) | -20 ÷ +55 | -20 ÷ +55 * 50/60 Hz | 24V D.C. |
| Type | PB1100 1 leaf | PB2100 2 leaves | Max door leaf width (mm) |
Max door leaf weight (Kg) |
250 200 150 |
250 + 250 200 + 200 150 + 150 |
800 1000 1200 |
| Code | Description |
| PB1100 | Complete automation system for 1 leaf swing doors. |
| PB2100 | Complete automation system for 2 leaf swing doors. |
| PF2100 | Door profile and profile cover for PB2100 |
| Code | Description |
| PB1001 | Straight transmission arm for "PULL" opening. |
| PB1002 | Articulated transmission arm for "PUSH" opening. |
| Code | Description |
| MA7041 | Function selector switch |
| MA7034 | Emergency battery card complete with two 12V - 0.6 Ah batteries. |
