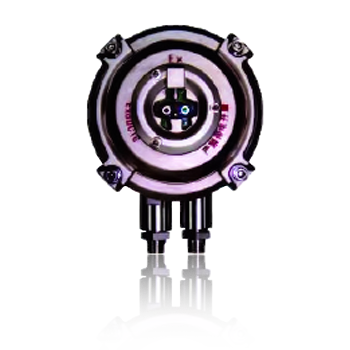

Digital Explosion Proof Dual IR Flame Detector D-9107RExd
Features
- Dual band Infrared flame detection
- Immune to sunlight, artificial light, heat radiation, providing a means of reliable operation
- Integrated functions of both addressable and conventional
- Electronically address by handheld programmer
- Suitable for civil applications & hazardous industrial locations such as Zone 1, Zone 2 in explosive environment and Zone 21 and Zone 22 in flammable dust atmosphere
| Name | Details |
| Operating Voltage | 24V |
| Standby Current | 2mA |
| Alarm Current | 4mA |
| Temperature | -20~+ 40°C |
| Relative Humidity | 95% |
| Dimensions (mm) | 166mm X 235mm X 199mm (with frame) |
| Ex Mark | ExibII CT6/DIP A21 TA, T6 |
| Ex Certificate No. | CNEx 06.0273 |
