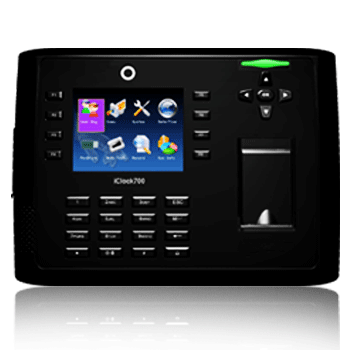

Introduction: DS-iClock 700 time attendance and access control terminal adopts ZKSoftware latest ZEM600 platform with ZKFinger 10.0 fingerprint algorithm to improve identification speed. It can manage 10000 templates within 1.5 second (I: N identification). The DS-iClock700 features ZK’s high performance, high image quality optical fingerprint sensor. The patented optical sensor is resistant to scratches, impact, vibration and electrostatic Shock.
Because of the common development platform, existing customer will be able to use iClock700 and co-exist with any existing ZK readers without re-enrolling the users. The iClock700 can be used in multi factor authentication that supports fingerprint, password, Proximity and Smart card. It also has an option for Wi-Fi and GPRS connectivity.
The DS-iClock700 has camera and 3.5” color TFT-LCD display, so it can display the individual graphical interfaces and personnel color photos. It comes standard with TCP/IP, RS-232/485, USB-host, USB-client, 8 functions keys, T9 input method, backup battery and has access control connectivity for Wigand-in, Wigand-out, Door lock connection, Alarm, Bell, Remote to Exit switch.
- Multimedia
Color TFT screen with GUI Interface for ease of use. - 3.5'' TFT screen support different Multimedia formats
- Internal Camera and Photo-ID support the user's photo display and make T&A application more visible and reliable.
- Time & Attendance
Built-in backup battery protects data. - Storage Capacity: Store up to 8,000 templates (1: N) and 200,000 records.
- More practical functions such as SMS, T9 input, Work-code enable user-friendly.
- Offer a wide selection in authentication mode and easy security system upgrade with combination of fingerprint, password and ID/MIFARE/HID card.
- Access Control
Monitor employee's movement at any time. Provide extra security with 50 time zone, user grouping, and professional unlocking combination function, easy integration with door lock system. - Communications
Versatile interface options including RS232/485, TCP/IP, USB Host, USB Client, Optional WIFI and GPRS
| Name | Details |
| Fingerprint Capacity | 8,000 templates |
| Transaction Capacity | 200,000 |
| Sensor | ZK Optical Sensor |
| Software | ZKTime.Net 3.0 |
| Communication | TCP/IP, RS232/485, USB (host & Client) |
| Standard Functions | Workcode, SMS, DST, Webserver, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 input, and photo-ID , Anti-passback, Camera, Built-in Battery , Multiple Verify Mode |
| Access Control Interface for | 3rd party electric lock, door sensor, exit button, alarm, Door Bell, Anti-pass back |
| Wiegand Signal | Input & Output |
| Optional Functions | ID/Mifare/HID, Webserver and Wi-Fi, 3G and GPRS, 10,000 cards |
| Display | 3.5 inches TFT Screen |
| Power Supply | 12V DC 3A |
| Operating Temperature | 0°C- 45°C |
| Operating Humidity | 20%-80% |
| Dimension | 225.2×166.0×46.3mm (Length×Width×Thickness) |
| Gross Weight | 1.94 kg |
