DS4

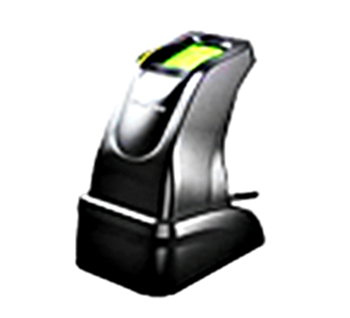

DS4 is a stable and excellent fingerprint reader. The device can capture fingerprint image and upload e to the PC by USB interface. DS4 supports most of the Windows OS, including Window xp, vista and Windows 7(32bit). We provide developer with SDK. The developer can integrate the DS4 hardware with their own system. This product is widely used in social insurance, public security, time attendance, fingerprint encryption, embedded system and other fields of application
Features
- High-performance, maintenance-free optical fingerprint sensor
- Readily accessible for any finger
- High quality industrial-class ABS plastic material with scratchproof texture surface treatment
- Removable weighted stand
- High speed USB interface
- LED indicates the status of the device
- Driver CD included
- Available SDK for secondary development
| Name | Details |
| Read-Write Module | Built-in Mifare one(13.56 MHz |
| Fingerprint sensor | Optical |
| Resolution | 512DPI/256 gray |
| Sensing Area | 15mm*20mm |
| Image Size | 280x360px |
| Interface | USB |
| Support O/S | Windows XP and Vista, windows 7(32bit) |
| Operating Temperature | 0°-55°C / 32-131°F |
| Operating Humidity | 20%-80% |
| USB cable length | 150cm |
| Color | Black |
| Standards | ISO 9001:2000, FCC Class B, CE, ICES, BSMI, MIC USB, WHQL |
| Dimension (WxLxH) | 65.5*49*79.8 0.20kg |
