DS5
- Description
- Specifications
DS5

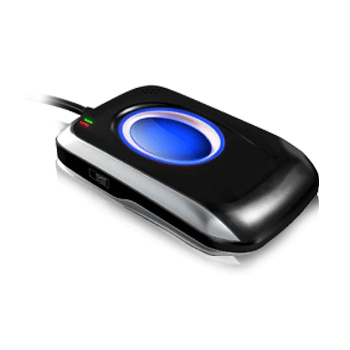

The DS5 Reader is a USB fingerprint reader, the user simply places his or her finger on the glowing reader window, and the reader quickly and automatically scans the fingerprint. On-board electronics calibrate the reader and encrypt the scanned data before sending it over the USB interface. The DS5 utilizes optical fingerprint scanning technology for superior quality and product reliability. The DS5 Reader and ZK fingerprint recognition engine have an unmatched ability to authenticate even the most difficult fingerprints
Features
- Small form factor
- Excellent scan quality
- Encrypted fingerprint data
- Latent print rejection
- Counterfeit finger rejection
- Rotation invariant
- Rugged
- Works well with dry, moist, or rough fingerprints
- Compatible with Windows. XP, 2000, Me, 98, NT. 4.0 and Windows Server 2000, 2003
| Name | Details |
| Pixel resolution | 512 dpi (average x,y over the field) |
| Scan capture area | 15 mm (nom. width at center), 20 mm (nom. length) |
| Display | 8-bit grayscale (256 levels of gray) |
| Reader size (approximate) | 63 mm x 39 mm x 91 mm |
| Compatibility | USB 1.0, 1.1 and 2.0 (Full Speed) specifications |
| Supply Voltage | 5.0V ±5% supplied by USB |
| Supply Current | scanning: 190 mA (Typical) idle mode 140 mA (Typical) suspend mode 1.5 mA (Maximum) |
| ESD Susceptibility | >15 kV, mounted in case |
| Oper. Temp. | 12V DC 1.5A0°C - 40° C |
| Oper. Humidity | 20% - 80% non-condensing |
| Storage Temp. | -10° - 60° C |
| Storage Humidity | 20% - 90% non-condensing |
| Scan data | 8-bit grayscale |
| Standards Compliance | FCC Class B, CE, ICES, BSMI, MIC, USB, WHQL |
