DS-2CC502/512/592P(N)-IR3
Download
Related Products
- Features
- Specifications

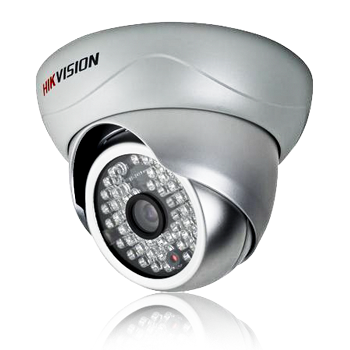

DS-2CC502/512/592P(N)-IR3 IR Dome Camera
Features
- 1/3" Sony CCD
- 420/480/540TVL
- Up to 40m IR range
- IP66 rating
- Day / night auto switch
| Section | Name | Details |
| CAMERA | Image Sensor | 1/3" SONY CCD |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | PAL:500(H)x582(V); NTSC:510(H)x492(V) |
|
| Min. Illumination: | 0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR 0.2 Lux @ (F1.8, AGC ON), 0 Lux with IR |
|
| Shutter Time: | 1/50(1/60)s to 1/100,000s | |
| Lens: | 6mm @ F1.8 (3.6mm, 2.8mm optional) Angle of view: 47° (6mm)/td> | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0 ~ 355°; tilt: 0 ~ 75° | |
| Day& Night: | Electronic | |
| Horizontal Resolution: | 420TVL | |
| Synchronization: | Internal Synchronization | |
| Video Output: | 1Vp-p Composite Output (75Ω/BNC) | |
| S/N Ratio: | More than 48dB | |
| BLC: | On | |
| GENERAL | Operating Conditions: | -10 °C - 60 °C (14 °F - 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | 12 V DC±10% | |
| Power Consumption: | Max. 3 W | |
| Weather Proof: | IP66 | |
| IR Range: | Approx 30 to 40 meters | |
| Dimension: | Φ 129 × 80.1mm (Φ5.08” × 3.15”) | |
| Weight: | 700g (1.54 lbs) |
