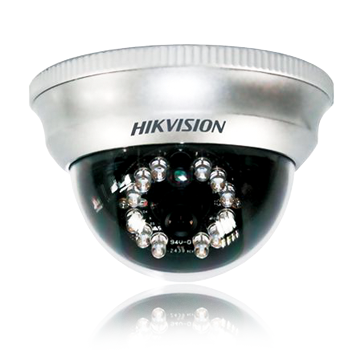

DS-2CC502/572P(N)-IMB Vandal-Proof IR Dome Camera
Features
- 1/3" Sony CCD
- 420/540TVL resolution
- Vandal proof
- IP66 rating
- Day / night auto switch
Section | Name | Details |
CAMERA | Image Sensor | 1/3" SONY CCD |
Signal System: | PAL/NTSC | |
Effective Pixels: | PAL:500(H)x582(V); NTSC:510(H)x492(V) |
|
Min. Illumination: | 0.1 lux@F1.2, AGC on, 0 lux with IR | |
Shutter Time: | 1/50(1/60)s to 1/100,000s | |
Lens: | 3.6mm (2.8mm, 6mm optional) Angle of view: 78° (3.6mm) |
|
Lens Mount: | M12 | |
Adjustment Range: | Pan: 0 ~ 355°; tilt: 0 ~ 65° | |
Day& Night: | Electronic | |
Horizontal Resolution: | 420TVL | |
Synchronization: | Internal Synchronization | |
Video Output: | 1Vp-p Composite Output (75Ω/BNC) | |
S/N Ratio: | More than 48dB | |
BLC: | On | |
GENERAL | Operating Conditions: | -10 °C - 60 °C (14 °F - 140 °F) Humidity 90% or less (non-condensing) |
Power Supply: | 12 V DC±10% | |
Power Consumption: | Max. 3 W | |
Impact Protection: | IEC60068-2-75 test, Eh, 50J; EN50102, up to IK10. |
|
Weather Proof: | IP66 | |
IR Range: | Approx 10 to 20 meters | |
Dimension: | Φ 108 × 70 mm (Φ 4.25” × 2.76”) | |
Weight: | 450g (0.99 lbs) |
