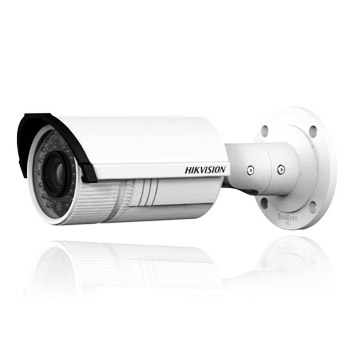

DS-2CD2632F-I(S) Vari-focal IR Bullet Camera
Features
- 3 megapixel high resolution
- 2.8-12mm vari-focal lens
- 3D DNR & DWDR & BLC
- IP66 rating
- IR range: up to 30m
- Audio and alarm optional
- True day / night
| Section | Name | Details |
| CAMERA | Image Sensor: | 1/3" Progressive Scan CMOS |
| Min. Illumination: | 0.07Lux @(F1.2,AGC ON) ,0 Lux with IR 0.1Lux @(F1.4,AGC ON), 0 Lux with IR |
|
| Shutter time: | 1/25s~1/100,000s | |
| Lens: | 2.8 - 12 mm @ F1.4,Angle of view: 105.2°-31.9° | |
| Lens Mount: | Φ14 | |
| Wide Dynamic Range: | Digital WDR | |
| Digital noise reduction: | 3D DNR | |
| Day & Night: | IR cut filter with auto switch | |
| COMPRESSION STANDARD | Video Compression: | H.264/M-JPEG |
| Bit Rate: | 32 Kbps ~ 16 Mbps | |
| Audio Compression: | -S: G.711/G.726 | |
| Dual Stream: | Yes | |
| IMAGE | Max. Image Resolution: | 2048×1536 |
| Frame Rate: | 50Hz: 12.5fps (2048 × 1536),25fps (1920 × 1080), 25fps (1280 × 720) 60Hz: 15fps (2048 × 1536),30fps (1920 × 1080), 30fps (1280 × 720) |
|
| Image Settings: | Saturation, brightness, contrast adjustable through client software or web browser | |
| BLC: | Yes, zone configurable | |
| NETWORK | Network Storage: | NAS |
Alarm Trigger: |
Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception | |
| Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour(SIP optional) | |
| Security: | User authentication, watermark | |
| System Compatibility: | ONVIF, PSIA, CGI | |
| Interface | Communication Interface: | 1 RJ45 10M / 100M ethernet interface |
| On-board storage: | Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB | |
| Reset Button: | Yes | |
| GENERAL | Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) | |
| Power Consumption: | Max. 5.5 W (Max. 7.5 W with IR cut filter on) | |
| IR Range: | Up to 30m | |
| Weather Proof: | IP66 | |
| Dimensions: | 95×105×258.6 mm (3.74" × 4.13" × 10.18") | |
| Weight | 1200g |
