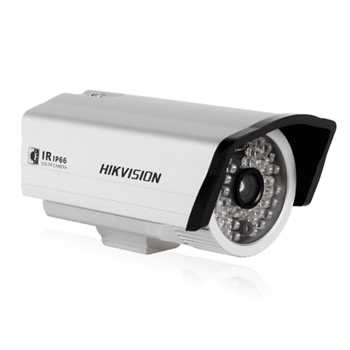

DS-2CD855-EI3(EI5) 2MP IR Bullet Network Camera
Features
- 2 megapixel high resolution
- HD 1080p real-time output
- Low illumination
- IP66 rating
- IR range: up to 30m
- True day / night
| Section | Name | Details |
| CAMERA | Image Sensor: | 1/2.8" Progressive Scan CMOS |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | 0.05Lux @(F1.2,AGC ON) ,0 Lux with IR | |
| Shutter time: | 1/25(1/30) s to 1/100,000 s | |
| Lens: | EI3:6mm@ F2.0 Angle of view:45.3° (4mm optional) EI5: 12mm@ F2.0 Angle of view:22° |
|
| Lens Mount: | M12 | |
| Day & Night: | IR cut filter with auto switch | |
| COMPRESSION STANDARD | Video Compression: | H.264 / MPEG4 / MJPEG |
| Bit Rate: | 32 Kbps ~ 16 Mbps | |
| Dual Stream: | Yes | |
| IMAGE | Max. Image Resolution: | 1920 x 1080 |
| Frame Rate: | 50Hz:25fps (1920 × 1080) 60Hz:30fps (1920 × 1080) |
|
| Image Settings: | Saturation, brightness, contrast adjustable through client software or web browser | |
| NETWORK | Network Storage: | NAS (iSCSI optional) |
| Alarm Trigger: | Motion detection, Dynamic Analysis, Tampering alarm | |
| Security: | User Authentication, Watermark, IP address filtering, anonymous access | |
| System Compatibility: | ONVIF, PSIA, CGI | |
| General | Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Operating Conditions: | -10 °C ~ 60 °C (14 °F ~ 140 °F) | |
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) | |
| Power Consumption: | Max. 6.5 W | |
| Weather Proof: | IP66 | |
| IR Range: | EI3:Approx. 20 to 30 meters EI5: Approx. 50 meters | |
| Dimensions: | 85.5×83.2×165.7 mm (3.4” × 3.3” × 6.5”) | |
| Weight: | 1000 g (2.2 lbs) |
