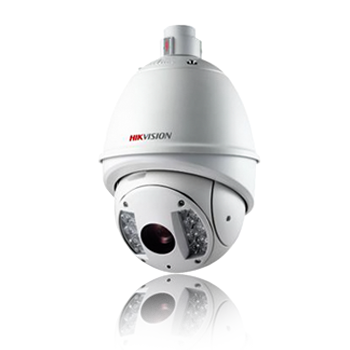

DS-2DF1-714/716/718 IR IP Speed Dome Camera
Features
- 1/4'' Sony Super HAD CCD
- True day / night
- 80m IR range
- 3D intelligent positioning function
- IP66 rating
| Section | Name | Details |
| CAMERA | Image Sensor | 1/4" SONY Super HAD CCD |
| Effective Pixels: | PAL:752(H)x582(V); NTSC:768(H)x494(V) |
|
| Horizontal Resolution: | Color: 540 TVL B/W: 570 TVL |
|
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.2 lux@F1.6 B/W: 0.02 lux@F1.6, 0 lux with IR |
|
| White Balance: | Auto / Manual / ATW / Indoor / Outdoor | |
| AGC: | Auto/Manual | |
| S/N Ratio: | ≥50dB | |
| BLC: | ON/OFF | |
| Shutter Time: | PAL: 1/50 ~ 1/10,000s, NTSC: 1/60 ~ 1/10,000s |
|
| Day &Night: | ICR | |
| Digital Zoom: | 16X | |
| Privacy Masking: | Up to 24 zones, and support up to 8 zones masked simultaneously in 1 image | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| LENS | Focal Length: | 3.84 ~ 88.4mm, 23x |
| Zoom Speed: | Approx.5.1s (optical Wide Tele) | |
| Angle of View: | 52.2 ~ 2.36° (Wide-Tele) | |
| Minimum Working Distance: | 10 ~ 1,200mm (Wide-Tele) | |
| Aperture Range: | F1.6 ~ F4.5 | |
| PAN & TILT | Pan Range: | 360°endless |
| Pan Speed: | Pan manual speed: 0.1° ~ 160°/s, pan preset speed: 240°/s | |
| Tilt Range: | -10° ~ 90° (auto flip ) | |
| Tilt Speed: | -10° ~ 90° (auto flip ) | |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 256 | |
| Patrol: | 8 patrols, up to 32 presets per patrol | |
| Pattern: | 4 patterns, with the recording time not less than 10 min per pattern | |
| Power loss recovery: | Support | |
| Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | |
| PTZ Position Display: | ON/OFF | |
| INFRARED | IR irradiation distance: | 80m |
| IR irradiation angle: | Adjustable by zoom | |
| ALARM | Alarm Input: | 2 inputs(7 inputs optional) |
| Alarm Output: | 2 channel relay output, with configurable alarm actions | |
| Alarm Actions: | Preset, patrol, pattern, SD/SDHC card recording, relay output, notification on client | |
| INPUT OUTPUT | Monitor Output: | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC |
| Audio Input: | Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10% | |
| NETWORK | Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution: | PAL:704x576; NTSC: 704x480 |
|
| Frame Rate: | PAL: 25 fps (704 × 576) NTSC: 30 fps (704 × 480) |
|
| Image Compression: | H.264 | |
| Audio Compression: | G.711 / 16kbps | |
| Protocols: | TCP/IP, HTTP, DHCP, DNS, RTP/RTCP, RTSP, PPPoE, SMTP, NTP (FTP, SNMP optional ) | |
| No. of Simultaneous Users: | Up to 6 user | |
| Dual Stream: | Support | |
| Mini SD Card: | Manual REC / alarm REC, built-in SD/SDHC slot, up to 32GB | |
| User/Host Level: | 3 levels: administrator, camera control, live view only | |
| Security Measures: | User authentication (ID and PW), host authentication (MAC address) | |
| CLIENT GUI | Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Camera Name: | Up to 18 characters | |
| Date & Time Display: | Time: Week: Date, 6 formats on the Client | |
| Reading Patrol Message: | Display and reading of preset message contained in each patrol via client software | |
| Fiber Optical Interface (Available for Fiber dome) |
Data Mode: | 10 base-T / 100 base-TX |
| Physical Interface: | FC (SC optional) | |
| Fiber Wavelength: | TX1310 / RX1550nm | |
| Fiber Type: | Single fiber / single mode | |
| Transmission Distance: | 20km, with 40km, 60km and 80km optional | |
| GENERAL | Menu Language: | English / Chinese |
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Power Supply: | 24V AC (12V DC optional) | |
| Power Consumption: | 50W max | |
| Working Temperature/Humidity: | -30 °C ~ 65 °C (-22 °F ~ 149 °F), 90% or less | |
| Protection Level: | IP66 with TVS 3000V lightning protection, surge protection and voltage transient protection | |
| Mounting: | Various mounting modes optional | |
| Dimensions: | Φ230.6 × 351.5mm ( Φ9.08" × 13.84" ) | |
| Weight | 5.5kg (12.13Ibs) |
