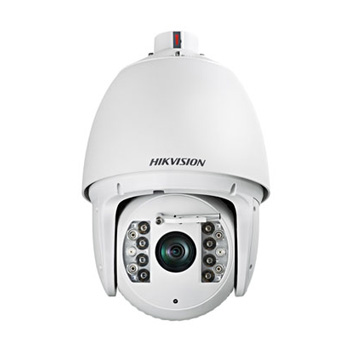

DS-2DF7286-AW 2MP IR Wiper Network Speed Dome
Features
- 1/2.8'' Progressive Scan CMOS, up to 1920x1080
- Smart Tracking, Smart Defog
- Smart IR, 120m IR distance
- 3D DNR, D WDR, HLC/BLC
- 30X Optical Zoom
- ROI encoding
- IP66 rating
- Wiper
| Section | Name | Details |
| CAMERA | Image Sensor | 1/2.8'' Progressive Scan CMOS |
| Effective Pixels: | 1920(H)x1080(V) | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color : 0.4 lux (F1.6,1/30 sec, 50 IRE, AGC On) B/W : 0.03 lux (F1.6,1/30 sec, 50 IRE, AGC On) 0 lux with IR Color : 0.05 lux (F1.6,1/1 sec, 50 IRE, AGC On) B/W : 0.005 lux (F1.6,1/1 sec, 50 IRE, AGC On) 0 lux with IR |
|
| White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
| AGC: | Auto/Manual | |
| S/N Ratio: | ≥ 50dB | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| Smart defog: | Support | |
| WDR: | Support | |
| Shutter Time: | 50Hz: 1-1/30,000s 60Hz: 1-1/30,000s |
|
| Day& Night: | ICR | |
| Digital Zoom: | 16X | |
| Privacy Masking: | 24 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen; optional multiple colors and mosaics | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| LENS | Focal Length: | 4.3-129mm, 30x |
| Zoom Speed: | Approx.3s(Optical Wide-Tele) | |
| Angle of View: | 65.5-2.11 degree (Wide-Tele) | |
| Minimum Working Distance: | 10-1500mm(Wide-Tele) | |
| Aperture Range: | F1.6-F5.0 | |
| PAN & TILT | Pan Range: | 360°endless |
| Pan Speed: | Pan Manual Speed: 0.1°-160°/s, Pan Preset Speed: 240°/s |
|
| Tilt Range: | -2°-90° (Auto Flip ) | |
| Tilt Speed: | Tilt Manual Speed: 0.1°-120°/s, Tilt Preset Speed: 200°/sParameter_2047=Up to 16 users，3 Levels: Administrator, Camera control, Live view only |
|
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 256 | |
| Patrol: | 8 patrols, up to 32 presets per patrol | |
| Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern | |
| Power loss recovery: | Support | |
| Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | |
| PTZ Position Display: | ON/OFF | |
| Freeze Frame: | Support | |
| Smart-tracking: | Support | |
| Wiper: | Support | |
| INFRARED | IR irradiation distance: | 120m |
| IR irradiation angle: | Adjustable by zoom | |
| ALARM | Alarm Input: | 7 Inputs |
| Alarm Output: | 2 channel relay output, with configurable alarm actions | |
| Alarm Actions: | Preset, patrol, pattern, SD/SDHC card recording, relay output, notification on client | |
| INPUT OUTPUT | Monitor Output: | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC |
| Audio Input: | Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10% | |
| Audio Output: | Line level, impedance: 600Ω | |
| NETWORK | Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution: | 1920×1080 | |
| Frame Rate: | 50Hz: 25 fps (1920×1080) 25 fps (1280×960) 25 fps (1280×720) 60Hz: 30 fps (1920×1080) 30 fps (1280×960) 30 fps (1280×720) |
|
| Image Compression: | H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile | |
| Audio Compression: | G.711ulaw/G.711alaw/G.726 | |
| Protocols: | IPv4, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE | |
| No. of Simultaneous Users: | Up to 10 users | |
| Dual Stream: | Support | |
| Mini SD Card: | Manual REC / Alarm REC. Built-in SD/SDHC Slot, up to 32GB Edge recording |
|
| User/Host Level: | Parameter_204=Tilt Manual Speed: 0.1°-120°/s, Tilt Preset Speed: 200°/sUp to 16 users，3 Levels: Administrator, Camera control, Live view onlyUp to 16 users，3 Levels: Administrator, Camera control, Live view only |
|
| Security Measures: | User authentication (ID and PW), Host authentication (MAC address) IP address filtering |
|
| CLIENT GUI | Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Client: | Support iVMS-4200 PCNVR | |
| Web Browser: | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language | |
| GENERAL | Menu Language: | English / Chinese |
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Power Supply: | 24 VAC(only available for -A model), 12 VDC(only available for -D model) | |
| Power Consumption: | Max. 50W(IR LED On), Max.35W(IR LED Off) | |
| Working Temperature/Humidity: | -30°C-65°C(-22°F-149°F)(outdoor) 90% or less |
|
| Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
| Mounting: | Various mounting modes optional | |
| Dimensions: | Φ245×399mm (Φ9.65"×15.71")(Outdoor) | |
| Weight | 5.5kg(12.13lbs) | |
| Mount Option: | Long-arm wall mount: DS-1614ZJ; Corner mount: DS-1633ZJ; Pole Mount: DS-1622ZJ; Power box mount:DS-1634ZJ |
