DS-8104HMI-ST

DS-8104HMI-ST

Download

  • Datasheet

Related Products

  • DS-8104HMI-ST
  • DS-1004HMI
  • DS-1002HMI-S
  • Features
  • Specifications

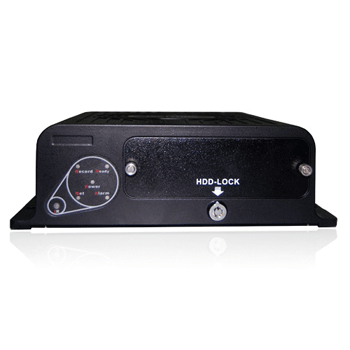

DS-8104HMI-ST Mobile DVR
Features
  • H.264 video compression
  • Up to 4CIF resolution recording
  • 2x2.5-inch SATA interfaces
  • Patented hard disk vibration-proof and bracing technology
  • Built-in 3G (WCDMA/cdma2000) module (optional)
  • Built-in GPS module
Section Name Details
Video/Audio Input Video Compression: H.264
Analog Video Input: 4-ch
PAL/NTSC Adaptive: Support
Video Input Interface: Aviation Connector (1.0 Vp-p, 75Ω)
Audio Compression: G.711
Audio Input: 4-ch
Audio Input Interface: Aviation Interface (linear electrical level, 1 kΩ)
Two-way Audio: 1 Aviation Interface (Linear electrical level, 1KΩ)
Compression resolution: Channel 1: 4CIF / 2CIF / CIF
Channel 2-4: CIF
Video/Audio Output Video output: 1-ch, Aviation Interface(1.0Vp-p, 75Ω)
Frame Rate: PAL: 1~25 fps, NTSC: 1~30 fp
Video Bit Rate: 32Kbps~2048Kbps, or user-defined
Stream Type: Video/Video&Audio
Audio Output: 1-ch Aviation Interface (Linear electrical level, 600Ω)
Audio Bit Rate: 16kbps
Dual Stream: Support
Hard Disk Driver Interface Type: 2 SATA Interfaces
Capacity: support 2.5” SATA HDD/SSD
Technical Patent: Patented hard disk vibration reduction technology
External Interface Network Interface: 1 RJ45 10M/100M adaptive Ethernet Interface
3G antenna interface: 2 antennas, SMA interface
USB Interface: 1 USB 2.0 interface
SD Card Interface: Support 1 SD/SDHC card for recording
Alarm Input: 3-ch high/low-level signal input
Alarm Output: 2-ch
GPS: Build-in GPS module
SIM/UIM: 1 standard SIM/UIM slot
Driving Information Collection: 4-ch high/low-level signal input, 1-ch pulse signal input(reserved)
General Power Supply: Input: +6 ~ +36 VDC; Output: +12 VDC / 2A, +5 VDC / 2A
Consumption: &10W
Working Temperature: -15 °C ~ +55 °C (5 °F ~ 131 °F)
Working Humidity: 10% ~ 95%
Dimensions: 236 × 210× 73 mm (9.3 × 8.3× 2.9 in)
Weight: ≤3 kg / 6.6 lb
