DS-7708NI-ST
Download
Related Products
- Features
- Specifications

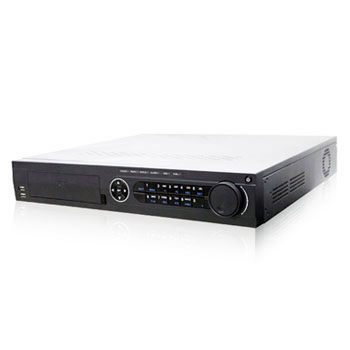

DS-7708NI-ST Series NVR
Features
- Up to 8/16/32-ch IP cameras input
- Third-party network cameras supported
- Up to 5 Megapixels resolution recording
- HDMI and VGA output at up to 1920×1080P resolution
- HDD quota and group management
- 4 SATA, 2 USB2.0
| Section | Name | Details |
| Video/Audio Input | IP Video Input: | 8-ch |
| Two-way Audio: | 1-ch BNC(2.0Vp-p, 1kΩ) | |
| Video/Audio Output | VGA Output: | 1-ch, resolution: 1920×1080P/60Hz,1600×1200/60Hz,1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| CVBS Output: | 1-ch, BNC (1.0 Vp-p, 75 Ω) Resolution: 704 × 576 (PAL); 704 × 480 (NTSC) |
|
| HDMI Output: | 1-ch, resolution: 1920 × 1080P /60Hz, 1920 × 1080P /50Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz |
|
| Recording resolution: | 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF | |
| Audio Output: | 2-ch BNC(Linear electrical level, 600Ω) | |
| Playback Resolution: | 5MP /3MP / 1080P / UXGA / 720P / 4CIF / VGA / DCIF / 2CIF / CIF / QCIF | |
| Synchronous Playback: | 8-ch | |
| Hard Disk Driver | Interface Type: | 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs |
| Capacity: | Up to 4TB capacity for each disk | |
| e-SATA Interface: | 1 eSATA interfaces | |
| External Interface | Network Interface: | 1 RJ45 10M/100M/1000M adaptive Ethernet Interface |
| USB Interface: | 3 USB2.0 interfaces | |
| Serial Interface: | 1RS-485 interface, 1 RS-232 interface, 1 RS-485 keyboard interface | |
| Alarm Input: | 16-ch | |
| Alarm Output: | 4-ch | |
| General | Power Supply: | 100~240 VAC, 6.3A, 50~60Hz |
| Consumption: | ≤ 35 W (without hard disk or DVD-R/W) | |
| Working Temperature: | -10°C ~ +55°C (14 °F ~ 131 °F) | |
| Working Humidity: | 10% ~ 90% | |
| Chassis: | 19-inch rack-mounted 3U chassis | |
| Dimensions: | 440 × 390 × 70 mm(W x D x H) | |
| Weight: | ≤ 4 Kg ( without hard disk or DVD-R/W ) |
