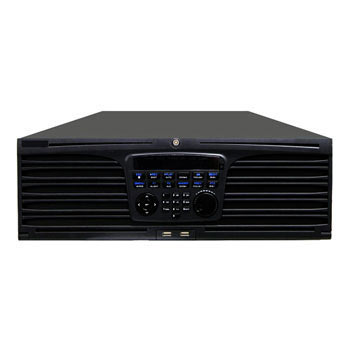

DS-9632NI-XT High-end NVR
Features
- Third-party network cameras supported
- Up to 5 Megapixels resolution recording
- HDMI and VGA output at up to 1920×1080P resolution
- Up to 16 SATA and 2 eSATA interfaces
- HDD quota and group management
- Dual gigabit network interfaces
| Section | Name | Details |
| Video/Audio Input | IP Video Input: | 32-ch |
| Two-way Audio: | 1-ch BNC(2.0Vp-p, 1kΩ) | |
| Video/Audio Output | VGA Output: | 1-ch, resolution: 1920×1080P/60Hz,1600×1200/60Hz,1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| CVBS Output: | 1-ch, BNC (1.0 Vp-p, 75 Ω) Resolution: 704 × 576 (PAL); 704 × 480 (NTSC) |
|
| HDMI Output: | 1-ch, resolution: 1920 × 1080P / 60Hz, 1920×1080P / 50Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz |
|
| Recording resolution: | 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF | |
| Audio Output: | 2-ch BNC(Linear electrical level, 600Ω) | |
| Playback Resolution: | 5MP /3MP / 1080P / UXGA / 720P / 4CIF / VGA / DCIF / 2CIF / CIF / QCIF | |
| Synchronous Playback: | 16-ch | |
| Hard Disk Driver | Interface Type: | 16 SATA Interfaces |
| Capacity: | Up to 4TB capacity for each disk | |
| e-SATA Interface: | 2 eSATA interfaces | |
| External Interface | Network Interface: | 2 RJ45 10M / 100M / 1000M adaptive Ethernet interfaces |
| USB Interface: | 3 USB2.0 interfaces | |
| Serial Interface: | 1RS-485 interface, 1 RS-232 interface, 1 RS-485 keyboard interface | |
| Alarm Input: | 16-ch | |
| Alarm Output: | 4-ch | |
| General | Power Supply: | 100~240 VAC, 6.3A, 50~60Hz |
| Consumption: | ≤45W | |
| Working Temperature: | -10°C ~ +55°C (14 °F ~ 131 °F) | |
| Working Humidity: | 10% ~ 90% | |
| Chassis: | 19-inch rack-mounted 3U chassis | |
| Dimensions: | 445 × 496 × 146 mm (17.5" ×19.5"× 5.7")(W x D x H) | |
| Weight: | ≤ 12.5 kg (27.6 lb) ( without hard disk or DVD-R/W ) |
