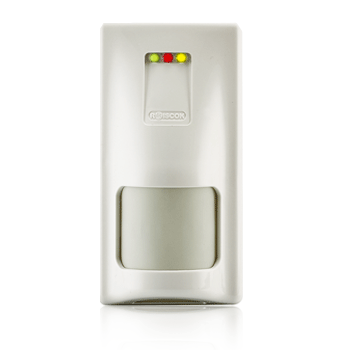

Digital Dual Technology Detector
PIR and microwave technology，Pet immunity, prevent 45Kg dog, 6 cats or other rodents
Features
- PIR and microwave technology
- Microprocessor design
- Pet immunity, prevent 45Kg dog, 6 cats or other rodents
- True temperature compensation
- Microwave range is adjustable
- Dual polarity pulse count is adjustable
- Resist interference of white light
- RFI immunity for false alarm
- Top view window and crawl zone
- Professional Fresnel optical lens
- Resist fluorescent interference
| Name | Details |
| Working voltage | 9-16VDC |
| Working current | <25mA(Standby)，<40mA(alarm) |
| Alarm contact | NC，max 100VDC/500mA,10VA(w) |
| Alarm time | 2.2S |
| Warm-up time | 2 minutes |
| RFI characteristics | 22V/m at 10MHz to 1GHz |
| Operating temperature | 0°Cto 55°Co |
| Storage temperature | 0°C～55°C |
| Storage temperature | -20°C~ 60°C |
| Size | 128×64×40mm |
| Detecting coverage | 11m |
| Pet immunity | RK111DT, 45Kg dog, 6 Cats |
