RK150DT
Download
Related Products
- Features
- Specifications

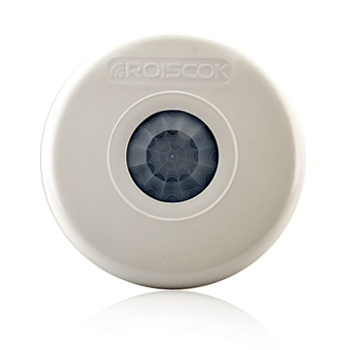

Dual Technology Ceiling Detector
Features
- Top view: 110 o,360o full orientation
- Height of Installation (Max):4.5m
- Dual IR And MW Technology
- Microprocessor Design Improves false alarm immunity
- True Temperature Compensation
- Microwave Range is Adjustable
- Dual Polarity Pulse Count is Adjustable
- Resist Interference of white Light
- Top View Window and Creep Zone
- Power Consumption is Low
- Professional Fresnel Optical Lens
- Ceiling Mounting
- Resist Fluorescent Interference
| Name | Details |
| Installation height and coverage | 6m（Coverage:13.5m diameter） |
| Top View | 97°，360° full orientation |
| Operating voltage | 9-16VDC |
| Current | <22mA(Standby)，<40mA(alarm) |
| Alarm contracts | NC，max 100VDC/500mA,10VA(W) |
| Alarm time | 2.2s |
| Warm-up time | 22V/m at 10MHz to 1GHz |
| RFI immunity | 22V/m at 10MHz to 1GHz |
| Operating temperature | 0°C to 55°C |
| Storage temperature | -20°C to 60°C |
| Size | Φ130×21mm |
| Weight | 169g |
