DS-2CC502/572P(N)-M
Download
Related Products
- Description
- Specifications

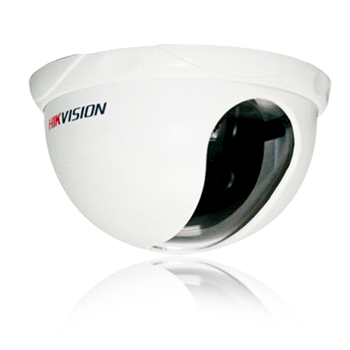

DS-2CC502/572P(N)-M -Dome Camera
Features
- 1/3'' Sony CCD
- Low illumination
- 420/540TVL resolution
- Electronic day / night
- Compact design
Section | Name | Details |
Cameras | Image Sensor: | 1/3'' SONY CCD |
Signal System: | PAL/NTSC | |
Effective Pixels: | (502): PAL: 500(H)x582(V); NTSC: 510(H)x492(V) (572): PAL: 752(H)x582(V); NTSC: 768(H)x494(V) |
|
Min. Illumination: | 0.1 Lux @ (F1.2, AGC ON) | |
Shutter Time: | 1/50(1/60)s to 1/100,000s | |
Lens: | 3.6 mm @ F2.0 Angle of view: 78° (3.6 mm) | |
Lens Mount: | M12 | |
Adjustment Range: | Pan: 0 - 120° Tilt: 0 - 90° | |
Day & Night: | Electronic | |
Horizontal Resolution: | (502): 420TVL | (572): 540TVL | |
Synchronization: | Internal Synchronization | |
Video Output: | 1Vp-p Composite Output (75Ω/BNC) | |
S/N Ratio: | More than 48dB | |
BLC: | On | |
General | Operating Conditions: | -10 °C - 60 °C (14 °F - 140 °F) Humidity 90% or less (non-condensing) |
Power Supply: | 12 V DC±10% | |
Power Consumption: | Max. 2 W | |
Dimension: | φ 110 × 62.5 mm (φ 4.33” × 2.46”) | |
Weight: | 350 g (0.77 lbs) |
