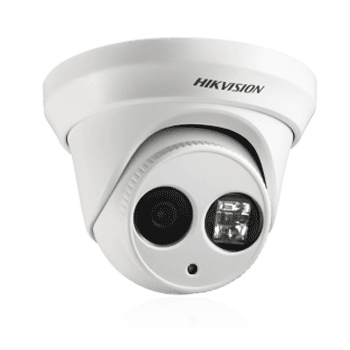

DS-2CE5682P(N)-IT1 EXIR Mini Dome Camera
Features
- 1/3'' PICADIS
- 600TVL high resolution
- EXIR 40m
- True day / night
- Smart IR
- IP66 rating
| Section | Name | Details |
| CAMERA | Image Sensor: | 1/3” DIS |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | PAL:752(H)x582(V); NTSC:768(H)x494(V) | |
| Min. Illumination: | 0.1Lux @ (F1.2,AGC ON),0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/15,000 s | |
| Lens: | 3.6mm (2.8mm,6mm,8mm optional) Angle of view: 68.4°(3.6mm) |
|
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° | |
| Day & Night: | IR cut filter with auto switch | |
| Horizontal Resolution: | 600TVL | |
| Synchronization: | Internal Synchronization | |
| Video Output: | 1Vp-p Composite Output (75Ω/BNC) | |
| S/N Ratio: | More than 52dB | |
| BLC: | On | |
| General | Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | 12 V DC±10% | |
| Power Consumption: | Max. 5 W | |
| Weather Proof: | IP66 | |
| IR Range: | Approx 10 to 20 meters | |
| Dimension: | Φ114.6× 89.1mm(Φ4.5” × 3.5”) | |
| Weight: | 300 g (0.66 lbs) |
