DI-9204
- Description
- Specifications

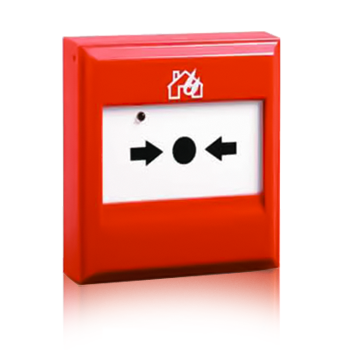

Digital Manual Call Point DI-9204
The DI-9204 constructed of high impact red ABS with a modem pleasing appearance.
Features
- Advanced digital communication
- Re-settable (non-breaking glass) via special key
- Electronically addressing
- Friendly installation and test
- Wiring before termination
- Semi-flush mount installation
- Optional back box for surface mount
- Stylish pleasing design
- LPCB Listed
| Name | Details |
| Protection Rating | IP55 |
| Operating Voltage | 24VDC Loop |
| Standby Current | 0.6mA |
| Alarm Current | 1.8mA |
| Operating Temperature | -10°C - 50°C |
| Relative Humidity | 95% |
| Application | Indoor |
| Dimensions (mm) | Surface Mount: 87 x 87.5 x 58 Flush Mount: 87 x 87 x 23.5 |
