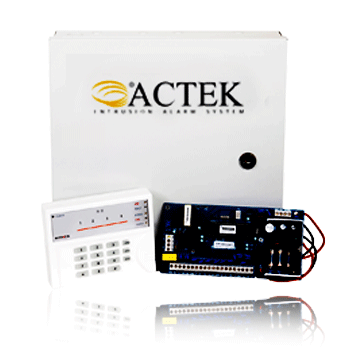

RP205CN

RP205CN can support LED keypad, 5 programmable zones,with networkingand alarm linkage output functions,compatible with international communication format. A clock, parameters and dates of control panel won't lost when system power off.

Perfect functions,it's very convenient in installation, programming and using. Free to program the location information, the default factory setting,can greatly reduce the limits of the installation,programming,operating time.

LED keypad

• robbery plice：【1】+【2】
• Fire：【4】+【5】
• medical alarm：【7】+【8】
• With Pressing button voice
• LED display alarm, power supply, arm, disarm, fire, isolation, anti-tamper
• System trouble tips
• Keyboard backlight tips
• Keyboard Anti demolition
• Stress code alarm
• Hot Key indicates isolation arm zone
• One key rapid system arming
• a key to rapid perimeter arming, password disarm
Mainboard
• 5 programming zones
• 8 types of programmable zones,7 types of voice formats
• Zones Terminal:NC、NO character detectors
• Support 1 channel UO Port, can drive external device. Max current can up to 70mA
• 10 group 4 digits grade codes
• Back-up rechargeble circuit, can charge the battery
• Auto daily arm
• Built-in siren drive,current output can be up to 750mA
• Built-in digital dialer,Contact ID communication protocol compatibole,4+2
• 2 CMS numbers and four follow-me numbers
Available external device
• Voice module
• Remote Control AT201R and AT201T,Using for disalarm/arm and Emergency
