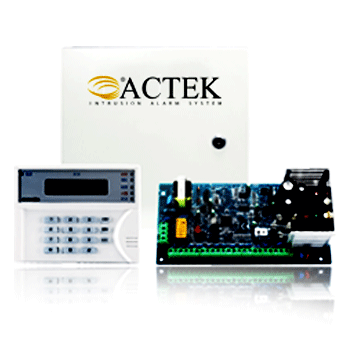

RP208CN
Download
Related Products
- Features
- Specifications
RP208CN
- 8 programmable zone
- LCD control keypad
- One key rapid system arming, a key to rapid perimeter arming, password disarm
- Keyboard comes with three emergency zone (button): robbery police [1] + [2], fire [4] + [5], medical alarm [7] + [8]
- LED display alarm, power supply, arm, disarm, fire, isolation, anti-tamper
- System fault indication
- Can connect up to 4 keypad to operate and program the control panel
- Duress Code Alarm
- A clock, power-down without losing programming parameters
- Group 4 following the telephone, group 2 Alarm Center Tel
- Built-in digital communications device, compatible with international standard Contact ID, 4 +2
- Built-charging circuit, extended battery life
- Keyboard backlight Tips
- Keyboard Anti-cut / split
- Automatic day deployment
- Automatic test report to the alarm center
- Event Record 50
- 10 Group 4 classification code
- Comes one relay output
| Name | Details |
| Input Power | 16.5VAC,25VA (via transformer) |
| Back-up battery | DC12V4Ah, or DC12V/7AH |
| Auxiliary Power supply | 12VDC,400mA maximum |
| Alarm port output | 12VDC,750mA maximum |
| Programmable output | open collector output, maximum 70mA |
| Loop response time | 500ms |
| Fuse AUX | auxiliary power supply 0.5A |
| Fuse BELL | Siren 1 A |
| Fuse BAT | battery 2A |
| Main Board Size | 82*172mm |
| Weight | 255g |
