RP248CN
Download
Related Products
- Features
- Specifications

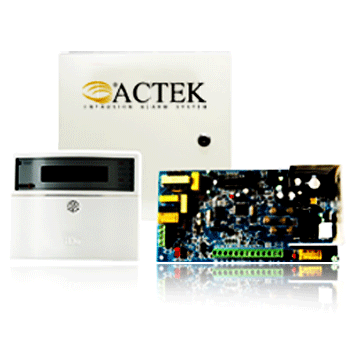

RP248CN
- 8-72 programmable zones
- With LCD control keypad
- Can connect up to 16 control keypad to operate and program the control panel
- Can be divided into 8 partition, independent arm / disarm
- 8 wired zones, 16 wired zones, 16 wireless zone expansion module can be added,
- Can add 4-way programmable output module (output current 3A)
- Zone terminal characteristics: NC,NO, terminal connect resistor
- Keyboard comes with three emergency zone (button): robbery police [1] + [2], fire [4] + [5], medical alarm [7] + [8]
- LED display alarm, power supply, deployment, disarm, fire, isolation, anti-tamper
- System fault indication
- Duress Code Alarm
- Built-bell function
- Comes one way relay output
- A clock, power-down without losing programming parameters and host state information
- 8 group to follow the phone, Group 3 Alarm Center Tel
- Built-in digital communications device, compatible with international standard Contact ID, 4 +2
- Built-charging circuit, extended battery life
- Keyboard backlight Tips
- Keyboard Anti-cut / split
- Automatic day deployment
- Automatic test report to the alarm center
- 128 event log
- 31 group of 4 or 6 classification code
- Communication between the host and the module is greater than 300 meters away
| Name | Details |
| Input Power | 16.5VAC 25VA (via transformer) |
| Back-up battery | DC12V/4AH, or DC12V/7AH |
| Auxiliary Power supply | 12VDC,400mA maximum |
| Alarm port output | 12VDC,750mA maximum |
| Programmable output | open collector output, maximum 70mA |
| Loop response time | 500ms |
| Fuse AUX | auxiliary power supply 1A |
| Fuse BELL | Siren 1 A |
| Fuse BAT | battery 2A |
| Main Board Size | 100*200mm |
