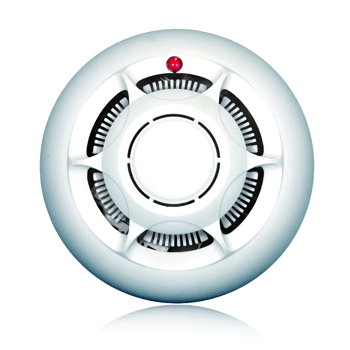

Wall Mount Gas Leak Detector
Features
- Detecting coal gas, natural gas, and LPG
- Advanced gas sensor
- Low power consumption
- LED indicates working status, alarm status and fault status
- Alarm output
- Driver output
- NC & NO option
- Sensitivity adjustable
- Electric polarity protect
| Name | Details |
| Detect Gas | Coal gas, Natural gas and LPG |
| Alarm Output | NC/NO optional(Linkage function can be custom-made) |
| Current | 110mA(Standby current)，130mA(alarm current) |
| Alarm concentration | 15%LEL |
| Resume concentration | 8%LEL |
| Working condition | -10°C ~ +60°C |
| Relative humidity | ≤90%RH |
| Stability | Long-term alarm concentration is less than ±5%LEL |
| Repeatability | Repeat test the alarm concentration is less than ±5%LEL |
| Stability error | <±5%LEL |
| Buzzer press | ≥80dB/m |
| Alarm concentration scope | 300 – 10000ppm |
| Response time | <2.2s |
| Resume time | ≤30s |
| Power supply | DC9-16V |
| Size | 104*68*40mm |
| Weight | 154g |
