Temperature detector

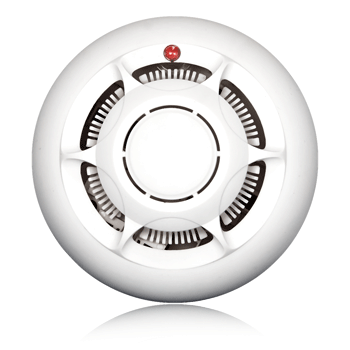

iDo505 is a temperature detector, suit for communtcation relay station, machineroom, garage,storehouse,cellar etc. The temperature detector will alarm when theenvironment temperature over the limited temperature.
Features
- Real-time testing environment temperature
- Sensitivity adjustable
- LED indicates working status, alarm status
- ON-OFF output
- NC/NO optional
- Suitable for various environments
- Low power consumption
| Name | Details |
| Detection | Temperature |
| Alarm temperature | 48°C, customizable (below 80°C) |
| Operational temperature | -10°C～+80°C； |
| Relative humidity | ≤90%RH |
| The buzzer volume | ≥80dB/m |
| Repetitiveness | ≤±5%LEL |
| Alarm method | NC/NO available |
| Power supply | DC9-16V |
| Current | <20mA(Standby),<40mA(alarm) |
| Output | linkage signal |
| Size | 102*35mm |
| Weight | 116g |
