iDo301

iDo301

Download

  • Datasheet

Related Products

  • RK210PR
  • RK210PT
  • RK410PR
  • RK410PT
  • RK2000DPR
  • RK2000DPC
  • RK0309
  • RK309D
  • iDo301
  • iDo301PT
  • iDo302D
  • iDo302DPT
  • iDo303DR
  • iDo304CM
  • iDo305CM
  • RK308S
  • RK308
  • Features
  • Specifications

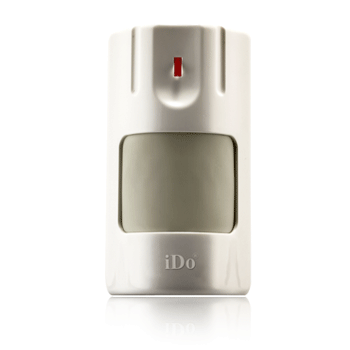

PIR Motion Detector

IDo301 Dual Sensor Motion Detector, IDo301 is a compact detector which has been designed special for residential installation.It has features as the strong ability to catch signal, false & lost alarm is very low, low power consumption and true temperature compensation.Equipped with professional pigmented optical lenses to resist the interference of white light, High technology, Smart manufacture, elegant appearances are all shown in our products. Its detective range is 10M.IDo301 can be equipped with RA93 swivel bracket for ceiling, wall or corner mounting.

Features
  • Dual Passive Infrared Detective Technology
  • True Temperature Compensation
  • Dual Polarity Pulse Count is Adjustable
  • Resist Interference of white Light
  • Power Consumption is Low
  • Professional Fresnel Optical Lens
  • Installed on Wall/Corner Mounting
  • Suitable to Swivel Brackets
  • Convenient for Installation
  • Resist Fluorescent Interference
  • Smart and Elegant Design is Ideal Selection for Residential Installations
Name Details
Working voltage 9-16VDC
Working current <12mA(Standby),<16mA(alarm)
Alarm contact NC,max 100VDC/500mA,10VA(W)
Alarm time 2.2s
Warm-up time 2 minutes
RFI characteristics 22V/m at10MHz to 1GHz)
Working temperature 0°C to 55°C
Installation Wall-mounted/corner
Suitable swivel bracket RA93
Detecting coverage 1.8m~2.5m
Detection range 10m
Size 105x58x38mm
eight 106.5g
