RK308S
Download
Related Products
- Features
- Specifications

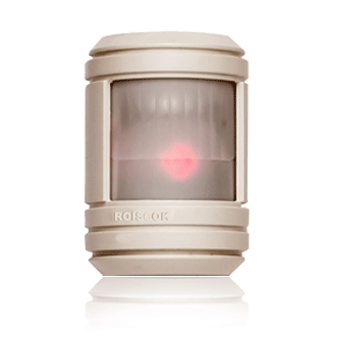

Dual infrared curtain detector
Features
- Dual Passive Infrared Detective Technology
- True Temperature Compensation
- Dual Polarity Pulse Count is Adjustable
- Resist Interference of white Light
- Power Consumption is Low
- Professional Fresnel Optical Lens
- Wall/ Corner mounting
- Suitable to Swivel Brackets
- Convenient for Installationc
- Resist Fluorescent Interference
| Name | Details |
| Detecting coverage | 12m |
| Working Voltage | 9-16VDC |
| Working Current | 16mA（Standby current），18mA（alarm current） |
| Alarm Contact | NC，100VDC，500mA |
| Alarm Time | <2.2s min |
| Warm-up Time | 2 minutes |
| RFI characteristics | 22V/m（10MHz ~1GHz） |
| Working Temperature | -10~ 55oC |
| Storage Temperature | -20°C to 60°C |
| Installation height | Wall/ Corner mounted |
| Storage Temperature | -20°C to 60°C |
| Suitable swivel bracket | RA93 |
| Size | 63×43×34mm |
| Weight | 50g |
