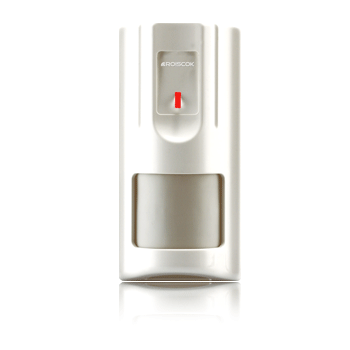

PIR Digital Motion Detector
Features
- With top view window, no blind area
- Dual passive infrared detective technology
- True temperature compensation
- Pulse count is adjustable
- Resist interference of white light
- RFI immunity
- Low power consumption
- Equipped with swivel bracket
- Professional Fresnel optical lens
- Wall-mounted /corner mounting
- Resist fluorescent interference
Name | Details |
Working voltage | 9-16VDC |
Working current | <2mA(Standby),<16mA(alarm) |
Alarm contact | NC,max 100VDC/500mA,10VA(W) |
Alarm time | 2.2s |
Warm-up time | 2 minutes |
RFI characteristics | 22V/m at10MHz to 1GHz) |
Working temperature | 0°C to 55°C |
Installation | Wall-mounted/corner |
Suitable swivel bracket | RA93 |
Detecting coverage | 1.8m~2.5m |
Detection range | 10m |
Size | 128x64x40mm |
Weight | 106.5g |
