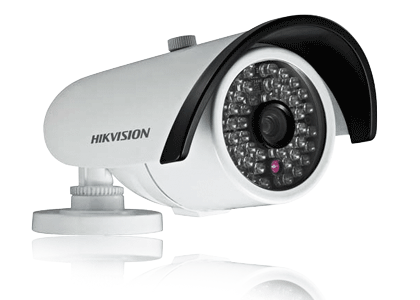

DS-2CE1582P(N)-IR1/IR3 600 TVL DIS IR Bullet Camera
Features
- 1/3'' DIS
- 600TVL high resolution
- Up to 20/40m IR range
- Smart IR
- IP66 rating
- True day / night
Section | Name | Details |
CAMERA | Image Sensor | 1/3'' DIS |
Signal System: | PAL/NTSC | |
Effective Pixels: | 640(H)x480(V) | |
Effective Pixels: | 640(H)x480(V) | |
Min. Illumination: | 0.1 lux @ (F1.2, AGC ON), 0 lux with IR 0.2 lux @ (F1.8, AGC ON), 0 lux with IR |
|
Shutter Time: | 1/25(1/30) s to 1/15,000 s | |
Lens: | IR1 series: 3.6mm @ F1.8 (2.8mm, 6mm optional), Angle of view: 70° (3.6mm) IR3 series: 12mm @ F1.8 (3.6mm, 6mm, 8mm, 16mm optional), Angle of view: 22.72° (12mm) |
|
Lens Mount: | M12 | |
Adjustment Range: | Pan: 0 - 360°, Tilt: 0 -90°, Rotation: 0 - 360° | |
Day& Night: | IR cut filter with auto switch | |
Horizontal Resolution: | 600TVL | |
Synchronization: | Internal Synchronization | |
Video Output: | 1Vp-p Composite Output (75Ω/BNC) | |
S/N Ratio: | More than 52dB | |
GENERAL | Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
Power Supply: | 12 V DC±10% | |
Power Consumption: | IR1 series: 6.5W IR3 series: 7.5W |
|
Weather Proof: | IP66 | |
IR Range: | IR1 series: Approx. 10 to 20 meters IR3 series: Approx. 30 to 40 meters |
|
Dimension: | 111.6 × 86.1 × 231.9 mm(4.39” × 3.39” × 9.13”) | |
Weight: | 1000 g (2.20 lbs) |
