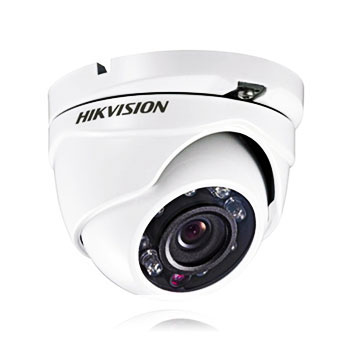

DS-2CE5582P(N)-IRM DIS IR Dome Camera
Features
- 1/3” DIS
- 600TVL high resolution
- EXIR 20m
- All-metal design
- IP66 rating
- True day / night
Section | Name | Details |
CAMERA | Image Sensor: | 1/3'' DIS |
Signal System: | PAL/NTSC | |
Effective Pixels: | 720(H)×480(V) | |
Min. Illumination: | 0.1 lux @ (F1.2, AGC ON), 0 lux with IR 0.2 lux @ (F1.8, AGC ON), 0 lux with IR |
|
Shutter Time: | 1/25(1/30) s to 1/15,000 s | |
Lens: | 3.6 mm (2.8mm,6 mm optional)
Angle of view: 68.4°(3.6mm) |
|
Lens Mount: | M12 | |
Adjustment Range: | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° | |
Day& Night: | IR cut filter with auto switch | |
Horizontal Resolution: | 600TVL | |
Synchronization: | Internal Synchronization | |
Video Output: | 1Vp-p Composite Output (75Ω/BNC) | |
S/N Ratio: | More than 52dB | |
GENERAL | Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
Power Supply: | 12 V DC±10% | |
Power Consumption: | Max. 2 W(Max. 5 W with IR cut filter on) | |
Weather Proof: | IP66 | |
IR Range: | Approx 10 to 20 meters | |
Dimension: | 89.6 × 59.1 mm (3.53" × 2.33") | |
Weight: | 400g (0.88 lbs) |
