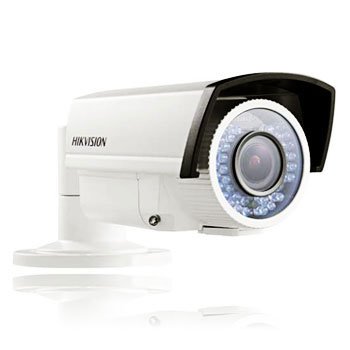

DS-2CE15A2P(N)-VFIR3 Vari-focal IR Bullet Camera
Features
- 1/3” DIS
- 700TVL high resolution
- Vari-focal Lens
- Up to 40m IR range
- IP66 rating
- True day / night
Section | Name | Details |
CAMERA | Image Sensor: | 1/3'' DIS |
Signal System: | PAL/NTSC | |
Effective Pixels: | 976(H)×496(V) | |
Min. Illumination: | 0.1Lux @ (F1.2,AGC ON),0 Lux with IR
0.14Lux @ (F1.4,AGC ON),0 Lux with IR |
|
Shutter Time: | 1/50(1/60)s to 1/100,000s | |
Lens: | 2.8-12 mm @ F1.4
Angle of view: 80° - 27.2° |
|
Lens Mount: | φ14 | |
Adjustment Range: | Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° | |
Day& Night: | IR cut filter with auto switch | |
Horizontal Resolution: | 700TVL | |
Synchronization: | Internal Synchronization | |
Video Output: | 1Vp-p Composite Output (75Ω/BNC) | |
S/N Ratio: | More than 62dB | |
BLC: | On | |
GENERAL | Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
Power Supply: | 12 V DC±10% | |
Power Consumption: | Max. 4 W(Max. 5 W with IR cut filter on) | |
Weather Proof: | IP66 | |
IR Range: | Approx 30 to 40 meters | |
Dimension: | 105 × 86.9 × 267.2mm(φ 4.13" x 3.42" x 10.52") | |
Weight: | 1350g (2.97 lbs) |
