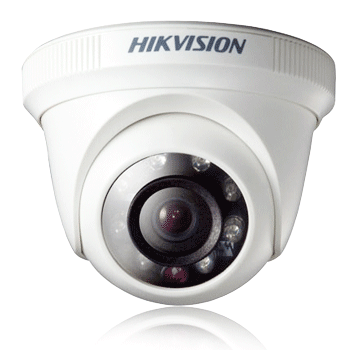

DS-2CE5512P(N)-IRP 500TVL DIS IR Dome Camera
Features
- 1/4” DIS
- 500 TVL resolution
- Up to 20m IR range
- True day / night
Section | Name | Details |
CAMERA | Image Sensor | 1/4'' DIS |
Signal System: | PAL/NTSC | |
Effective Pixels: | 640(H)x480(V) | |
Min. Illumination: | 0.1 lux @ (F1.2, AGC ON), 0 lux with IR 0.2 lux @ (F1.8, AGC ON), 0 lux with IR |
|
Shutter Time: | 1/25(1/30) s to 1/15,000 s | |
Lens: | 2.8 mm @ F2.0 (3.6 mm, 6 mm, optional) Angle of view: 66.2° (2.8 mm) |
|
Lens Mount: | M12 | |
Adjustment Range: | Pan: 0 - 360°; Tilt: 0 - 85°; Rotation: 0 - 360° | |
Day& Night: | IR cut filter with auto switch | |
Horizontal Resolution: | 500TVL | |
Synchronization: | Internal Synchronization | |
Video Output: | 1Vp-p Composite Output (75°/BNC)) | |
S/N Ratio: | More than 52dB | |
GENERAL | Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
Power Supply: | 12 V DC±10% | |
Power Consumption: | 4.5W MAX | |
IR Range: | Approx. 10 to 20 meters | |
Dimension: | Φ 89.5 × 69.8 mm ( Φ 3.52” × 2.75”) | |
Weight: | 200 g (0.44 lbs) |
