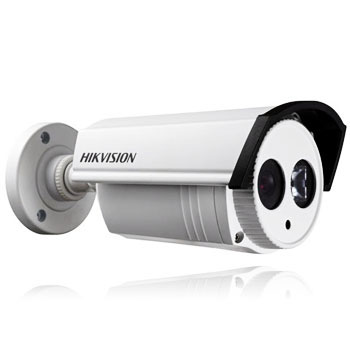

DS-2CE16A2P(N)-IT1 EXIR Bullet Camera
Features
- 1/3” DIS
- 700TVL high resolution
- EXIR 20m
- Smart IR
- IP66 rating
- True day / night
| Section | Name | Details |
| CAMERA | Image Sensor: | 1/3'' DIS |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 976(H)×496(V) | |
| Min. Illumination: | 0.1 Lux @ (F1.2,AGC ON),0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/15,000 s | |
| Lens: | 3.6mm (2.8mm,6mm,8mm optional)
Angle of view: 68.4°(3.6mm) |
|
| Lens Mount: | M12 | |
| Day & Night: | IR cut filter with auto switch | |
| Horizontal Resolution: | 700TVL | |
| Synchronization: | Internal Synchronization | |
| Video Output: | 1Vp-p Composite Output (75Ω/BNC) | |
| S/N Ratio: | More than 62dB | |
| GENERAL | Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | 12 V DC±10% | |
| Power Consumption: | Max. 5 W | |
| Weather Proof: | IP66 | |
| IR Range: | Approx 10 to 20 meters | |
| Dimension: | 94.6×83×210.8mm(3.72"×3.27"×8.30") | |
| Weight: | 700 g (1.54 lbs) |
